360°Liquid Probe Type Measuring Inner Wall Lens
Product Features
A single camera acquires images of the inner walls of the cavity Shoot into the inside of the hole,and the depth can be measured
Product Applications
It is suitable for the inner wall inspection of deeper cavities and inner holes
Download
Product Parameters
Product Cases
Overall dimensions
Product Parameters
| Model |
Side view Angle° |
Effective F Number |
Wavelength Range (nm) |
Probe Diameter mm |
Probe Length mm |
Object Field of View Inside diameter×Depth（mm×mm） 1/3*4.80*3.20 |
||
| 最小 | 典型 | 最大 | ||||||
| TCSPBI-13-20 | 70 | 14 | 450~650 | 18 | 252.7 | 25.0×14.6 | 100.0×69.6 | Infxinf |

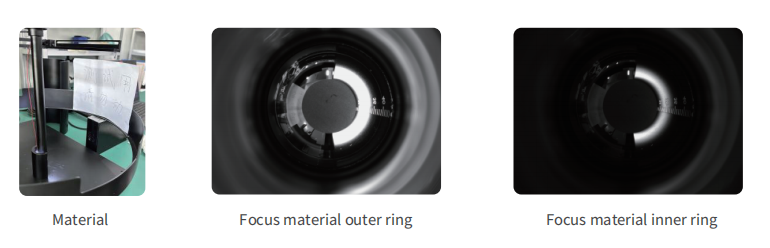

Product Cases
Outline dimension drawing
TCSPBI-13-20
