Structural Lights LS Series
Product Features
Clear light spot boundary and uniform irradiation
Suitable for C interface lens,the pattern size can
be adjusted by changing the lens focal length

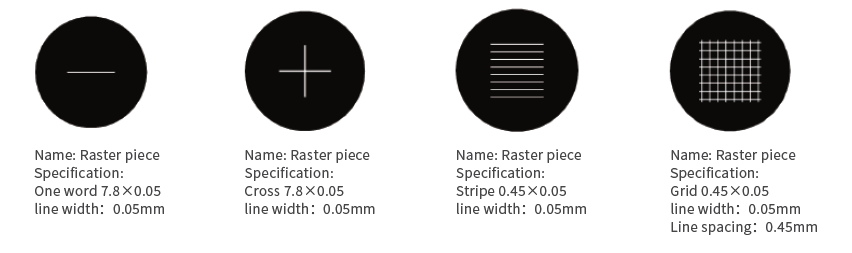

Different grid patterns can be customized
Product Applications
Product flatness detection
3D reconstruction and analysis
Dimension measurement of electronic
components
Download
Product Parameters
Product Cases
Overall dimensions
Product Parameters
| Product Model | Power (A/W) | Outer Diameter (mm) | Length (mm) |
| LT-LS40-W-005L | 1A/24W | 42 | 65~77.5 |

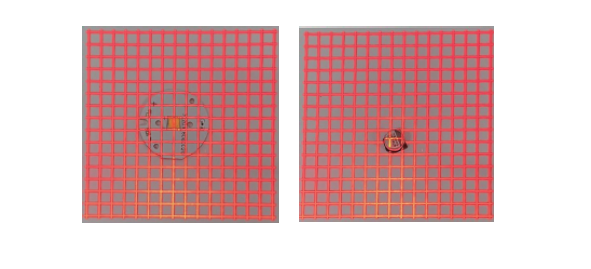

Product Cases
Outline dimension drawing
LT-LS40-W-005L
