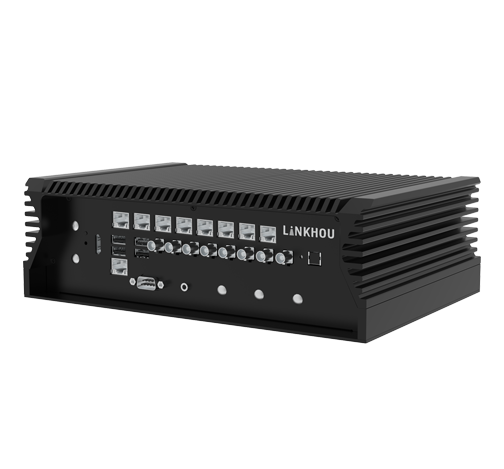

AIRC Universal Smart Controller
AIRC Universal Smart Controller
The Linkhou Universal Robot Controller offers dual-platform options: AIRC-NA101 and AIRC-NT100, based on the NVIDIA Jetson AGX Orin and Jetson AGX Thor architectures respectively, catering to the needs of different generations of humanoid robots.
Download
Product Parameters
Product Parameters
| Main parameters | ||
| Category | AIRC-NA101 | AIRC-NT100 |
| Processor | Nvidia AGX 0rin 64G | NVIDIA Jetson AGX Thor |
| AI computing power | 275 TOPS | 2070 FP4 TFLOPS |
| Storage - Memory | 64GB LPDDR5 | 128GB LPDDR5 |
| Storage - Hard Disk | Standard configuration: 1TBSSD; Supports external NVMe storage | Standard configuration includes a 1TBSSD |
| Audio | 1xMic input +1xLine_"Out output" | 2xMIC input +2x power amplifier output (8Ω/8W per channel) |
| Interface -GMSL camera | 8xGMSL2 channels | 12xGMSL2 channel |
| Interface -USB | 4xUSB 3.2 | 6xUSB 3.2 |
| Interface -CAN/CANFD | 2xCAN FD | 4xCAN FD |
| Interface - Ethernet | 1x 10-Gigabit Ethernet +3x dry-Gigabit Ethernet | 1x 10-Gigabit Ethernet +6x Dry Gigabit Ethernet |
| Interface -EtherCAT | Support EtherCAT master station | Support EtherCAT master station |
| Interface -HDMI | 1xHDMI 2.0 Type A | 1xHDMI 2.0 Type A |
| Interface - Serial Port | 2 xRS232/RS485 | 1xRS232 Debug、2xRS232、2xRS485、1xRS422 |
| Interface -GPIO | 4xGPI+4xGP0 | 4xGPI+4xGPO |
| Wireless communication -5G | An optional Quectel 5G module is available | Supports 4G/5G(optional, compatible with 4G/5G modules) |
| Wireless communication -WiFi/Bluetooth | WiFi6 + Bluetooth 5.3 | WiFi6 (compatible with Wifi7) + Bluetooth 5.3 |
| Power supply - Voltage range | 12~28V DC | 9~36V DC |
| Power supply - rated voltage | 24V DC | 24V DC |
| Power supply - Power consumption | 100~120W | 40~300W |
| Power supply - protection measures | Supports reverse connection, overcurrent, overvoltage and undervoltage protection | Supports reverse connection, overcurrent, overvoltage and undervoltage protection |
| Environment - Operating temperature | -20°℃~+50°℃ | -25℃~+70°℃ |
| Environment - Storage temperature | -40°℃～+80°℃ | -40°℃~+85℃ |
| Dimension (mm） | 156.2*131*58.6 | 167.8*139.8*78 |
| Weight（kg) | 1.5 | 2.3 |
| System - Operating System | Jetpack6.2 | Jetpack7.0、Jetpack7.1 |
*The above parameters are all obtained through tests in accordance with the LINKHOU experimental standards.。
