360°Liquid Inner Wall Measurement Lens
Product Features
Shoot at the top of the hole, which can simultaneously measure the images of theinner wall and bottom of the cavity
Suitable for detecting the bottom and inner wall of cavities and container holes
The minimum measurable inner diameter can be ex
Product Applications
It is applicable to the bottom and inner walls of cavities and containers' inner holes
Download
Product Parameters
Product Cases
Overall dimensions
Product Parameters
| Model | WD mm |
MTF30 |
Effective F Number |
Wavelength Range (nm) |
Mount | Dimensions mm×mm |
Object Field of View(mm x mm) Diameter x Depth 2/3"8.45*7.07 |
|
| 最大 | 最小 | |||||||
| TCSPCI23-05-35 | 1~60 | ≥50 | 8.3 | 450~650 | C | Φ30×114.7 | 3.0×1.0 | 120×190 |
| TCSPCI23-05-35-W | 1~60 | ≥50 | 8.3 | 450~650 | C | Φ30×114.7 | 3.0×1.0 | 120×190 |
| Hole Diameter mm |
Inner Wall Depth mm |
WD mm |
| 3.0 | 1.0 | 1.5 |
| 10 | 5 | 5 |
| 15 | 10 | 7 |
| 20 | 20 | 9 |
| 25 | 30 | 11 |
| 30 | 35 | 15 |
| 40 | 55 | 20 |
| 50 | 70 | 25 |
| 60 | 85 | 30 |
| 70 | 100 | 35 |
| 80 | 120 | 40 |
| 100 | 155 | 50 |
| 120 | 190 | 60 |

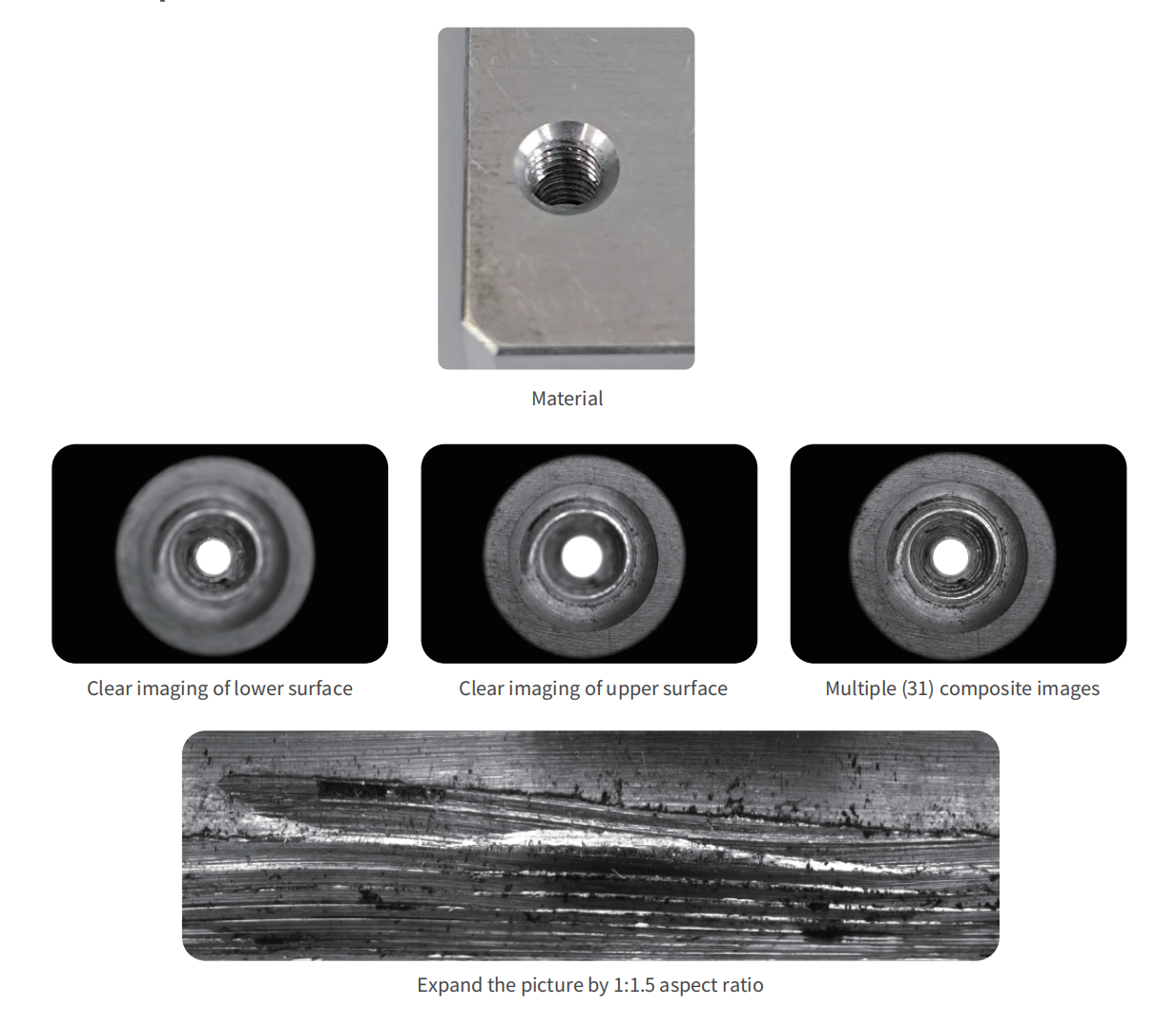

Product Cases
Outline dimension drawing
TCSPCI23-05-35
TCSPCI23-05-35-W
