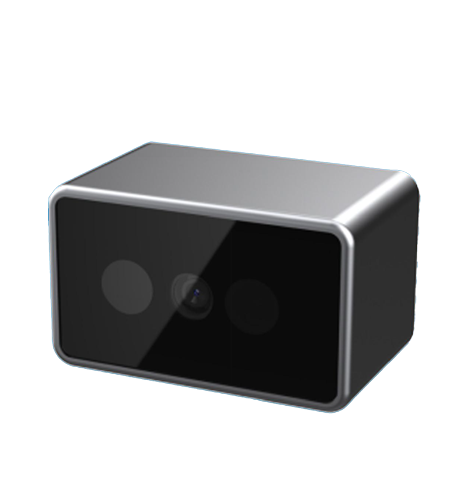

Monocular structured light camera
LH-DS-M0
Monocular structured light camera
LH-DS-M0
The LH-DS-M0 is a monocular structured light series 3D camera from Linkhou, featuring a compact size that makes it suitable for 3D measurement in robotic dexterous hands and space-constrained areas. Leveraging the excellent depth performance and capabilities of the LH-DS-M0,
it is available in two different versions: 1) USB interface version, and 2) GMSL interface version.
Download
Parameter
Product Parameters
Parameter
The scope of deep work
0.07-0.6mIP protection
IP65Laser safety
Class 1Product Parameters
| Parameter | LH-DS-M0-G | LH-DS-M0-U |
| Operating environment | Indoor & Outdoor | |
| Deep technology | Single-eye structured light technology | |
| LDM wavelength | 940nm | |
| The scope of deep work | 0.07-0.6m | |
| Ideal job scope | 0.085-0.5m | |
| Recent working distance | 0.07m | |
| Relative spatial accuracy | ≤1% (640*400 @0.5m & 90% *90% ROI) | |
| Depth resolution @ frame rate | UP to: 640*400@180fps | |
| Depth field of view (H*V) | 77°*55° | |
| RGB resolution @ frame rate | 1600*1200@20fps 1280*720@30fps | 1920*1080@ 30fps |
| RGB field of view (H*V) | 75°*63° | |
| Shutter type | Depth: Global Exposure; Color: Global Exposure | |
| Data transmission protocol | GMSL2 | USB |
| Power supply requirements | FAKRA-Z: ≥0.4A @12V | USB Type-C: ≥1.5A @5V |
| Environmental Requirements | Storage temperature: -10°C to 50°C, operating temperature: 0 to 40°C | |
| IP protection | IP65 | |
| Laser safety | Class 1 | |
| Product dimensions (W x H x D) | 40.0*23.7*24.0mm | |
| Product weight | 36.6g | |
*The above parameters are all obtained through tests in accordance with the LINKHOU experimental standards.。
